Salient Features :

ABV - 4-16

Design

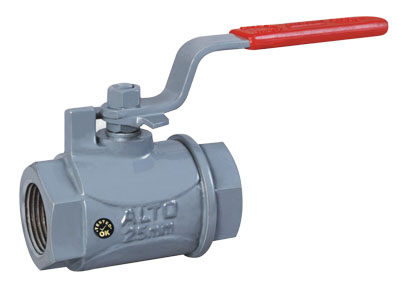

Cast Iron Ball Valves BSP Screwed Female Ends One Piece Design having S S Ball supported by PTFE rings, Flat Lever attached from l5mm to 50mm & S.G. Iron Handle attached from 65mm to 100mm.
NOTE : A detachable Pipe Handle is supplied with this Valve (from 65mm to 100mm) to be attached with S.G. Iron Handle while installing/operating.

Range

15mm to 100mm.

Operation

Marking

:

:

Quick opening by quarter turn operation.

One side of body "ALTO" & "Size".
Other side of body "Tested 34kg/cm²".

Utility

Fuel oils, kerosene oils, compressed air, gases, low pressure steam, viscous fluids & hydraulic (Water, Oil etc) installations.

Temp. Range

10° C to 200° C.

Testing

Hydraulically

Test Pressure				Max C.W.P
Body		Seat		Body/Seat
500 PSI	34 kg/cm²	300 PSI	20 kg/cm²	200 PSI	14 kg/cm²

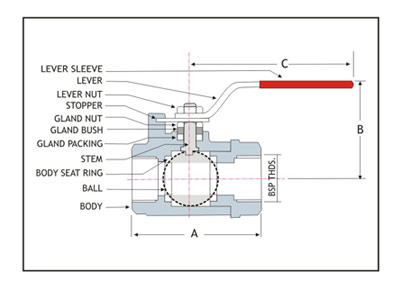

DIMENSIONS : (in mm)
Size (in mm)	A	B*	C*
15	80	61	100
20	86	68	105
25	95	75	125
32	115	105	173
40	121	105	173
50	133	105	200
65	155	124	354
80	178	136	354
100	218	187	428

Tolerance : ±1.5 mm in 'A'.

*Approx

MATERIALS :
Components	Material	Specification
Body	Cast Iron	IS : 210 Gr. FG-200
Ball	Stainless Steel	AISI-202/304/316
Stem & Gland Bush	Stainless Steel	AISI-410/202/304/316
Nuts, Stopper & Lever	Mild Steel	IS : 226
Handle	S.G. Iron	IS : 1865 Gr.450/10
Body Seat Rings, Gland Packing & Stem Seal	P T F E	---
Lever/Pipe Sleeve	P.V.C	P.V.C
