| Salient Features : |
| ABV - 4-18 |
| |
| |
 |
|
| Design |
: |
Cast Iron
Ball Valve BSP Screwed Female Ends Three Piece Design
having S.S Ball supported by PTFE rings, Flat Lever attached
from 15mm to 50 mm & S.G iron
Handle attached from 65mm to 100mm.
NOTE : A detachable Pipe Handle is Supplied
With this Valve (from 65mm to 100mm) to be
attached with S.G iron Handle while installing/operating. |
| |
|
| Range |
: |
15mm to 100mm |
| |
|
Operation
Marking |
:
: |
Quick opening by quarter turn operation.
One side of the body "ALTO" & "Size"
Other side of body "Tested 34kg/cm²". |
| |
|
| Utility |
: |
Fuel oils, kerosene oils, compressed air, gases, low pressure steam, viscous fluids & hydraulic (Water, Oil etc) installations. |
| |
|
|
| Temp. Range |
: |
10° C to 200° C. |
| |
|
| Testing |
: |
Hydraulically |
| Test
Pressure |
Max
C.W.P |
| Body |
Seat |
Body/Seat |
500
PSI |
34
kg/cm² |
300
PSI |
20
kg/cm² |
200
PSI |
14
kg/cm² |
|
 |
| |
|

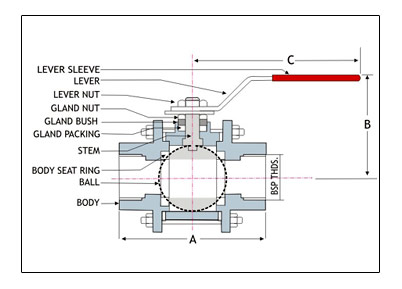

| DIMENSIONS : (in mm) |
| Size (in mm) |
A |
B* |
C* |
| 15 |
80 |
65 |
125 |
| 20 |
93 |
65 |
125 |
| 25 |
107 |
75 |
125 |
| 32 |
118 |
78 |
173 |
| 40 |
126 |
100 |
173 |
| 50 |
138 |
104 |
203 |
| 65 |
166 |
130 |
354 |
| 80 |
185 |
140 |
354 |
| 100 |
244 |
205 |
428 |
|
| Tolerance : ±1.5 mm in 'A'. |
*Approx |
|
|
| |
| MATERIALS
: |
| Components |
Material |
Specification |
| Body |
Cast Iron |
IS : 210 Gr. FG-200 |
| Ball |
Stainless Steel |
AISI-202/304/316 |
| Stem & Gland Bush |
Stainless Steel |
AISI-410/202/304/316 |
| Nuts, Stopper Lever & Studs |
Mild Steel |
IS : 226 |
| Spring Washer |
Spring Steel |
--- |
| Handle |
S.G. Iron |
IS : 1865 Gr.450/10 |
| Body Seat Rings, Gland Packing
& Stem Seal |
P T F E |
--- |
| Lever/Pipe Sleeve |
P.V.C |
P.V.C |
| Gasket |
Compressed Asbestos |
IS : 2712 Gr. C |
|
