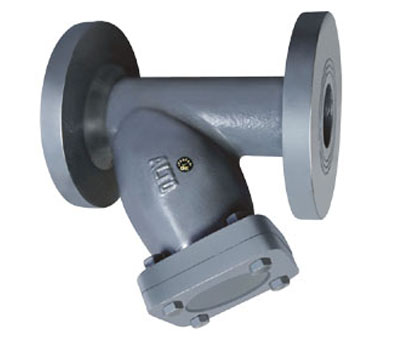

Cast Iron Strainer "Y" type Flanged Ends
matched to BS-l0 Table 'D'/'E'/'F'/'H'/Class-150/ISI with stainless steel 304
Mesh/Filter having Perforation size of 1 mm. NOTE : Mesh with Other perforation sizes
may be supplied on demand.
Range
:
25mm to 200mm.
Operation
Marking
:
:
Self operated
One side of the body "ALTO".
Other side of the body "Size" & "Arrow".
Utility
:
Mechanical equipments like Pumps, Burners,
Nozzles, Pressure Reducing Valves, Meters, Traps,
Turbines, Filters & Domestic Water Lines.
Temp. Range
:
10° C to 200° C
Testing
:
Hydraulically
Test
Pressure
Max
C.W.P
300
PSI
20
kg/cm²
150
PSI
10
kg/cm²
DIMENSIONS : (in mm)
Size
(in mm)
A
B
D
T
25
162
103
120.6
12.7
32
185
122
133.4
16
40
207
152
139.7
16
50
210
179
165
19
65
250
184
184.2
19
80
270
227
203.2
19
100
380
243
228.6
23.8
125
416
295
279.4
23.8
150
450
335
304.8
25.4
200
520
420
368.3
28.6
Tolerance : ±1.5 mm in 'A', ±1 mm in 'D', -0 mm in 'T'
