Salient Features :

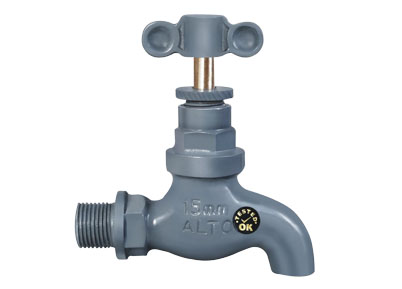

AB 4-05
Design :
Screw-down Cast Iron Bib Tap screwed male end with Forged Brass Stem & Brass jumper valve.

Range : 15mm to 25mm.

Marking : One side of the body "ALTO"  &  "Size".
Other side of the body "Tested 20kg/cm²".

Utility : Quite suitable for Water and Oil applications.

Temp. Range : 10° C to 100° C.

Testing : Hydraulically
Test Pressure Max C.W.P
Body Seat Body/Seat
300
PSI		 20
kg/cm²		 300
PSI		 20
kg/cm²		 200
PSI		 14
kg/cm²

DIMENSIONS : (in mm)
Size (in mm) B*
15 91
20 110
25 130
  *Approx
MATERIALS :
Components Material Specification
Body, Gland Nut, Bonnet & Handle Cast Iron IS : 210 Gr. FG-200
Stem & Jumper Valve Brass IS : 3488
Disc Synthetic rubber BS-2751 BA 80
Gland Packing Asbestos Yarn IS : 4687-1980
Pin Mild Steel IS : 226

Salient Features :
AS 4-06
Design : Screw-down Cast Iron Stop Valve screwed female ends with Forged Brass spindle & Brass jumper valve.

Range : 15mm to 25 mm.

Marking : One side of the body "ALTO"  &  "Size".
Other side of the body "Tested 20kg/cm²".

Utility
:
 Quite suitable for Water and Oil applications.

Temp. Range : 10° C to 100° C.

Testing : Hydraulically
Test Pressure Max C.W.P
Body Seat Body/Seat
300
PSI		 20
kg/cm²		 300
PSI		 20
kg/cm²		 200
PSI		 14
kg/cm²

DIMENSIONS : (in mm)
Size (in mm) A B*
15 75 88
20 92 118
25 107 132
Tolerance : ±1.5 mm in "A" *Approx
MATERIALS :
Components Material Specification
Body, Gland Nut, Bonnet & Handle Cast Iron IS : 210 Gr. FG-200
Stem & Jumper Valve Brass IS : 3488
Disc Synthetic rubber BS-2751 BA 80
Gland Packing Asbestos Yarn IS : 4687-1980
Pin Mild Steel IS : 226
